Placed here with kind permission of by Bela V. from Hungary

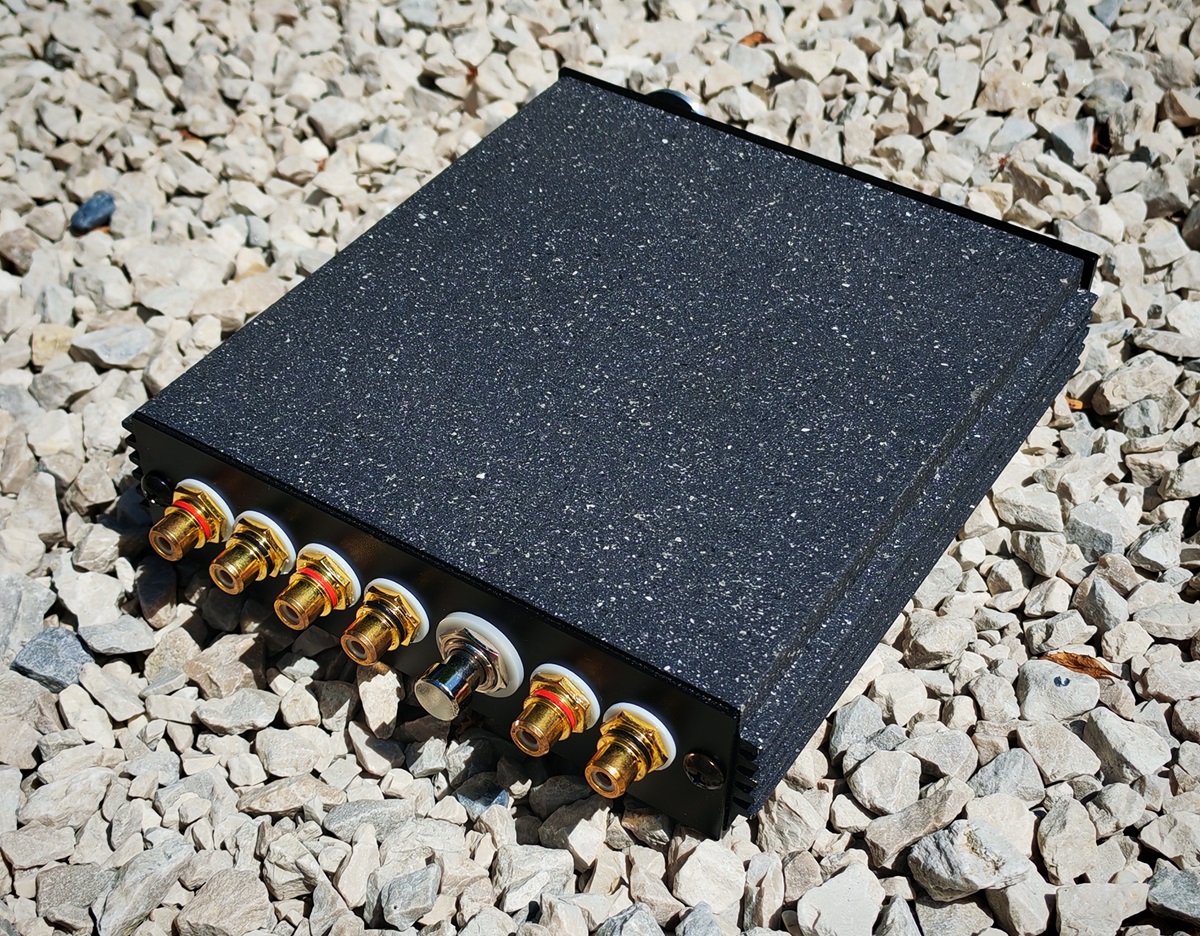

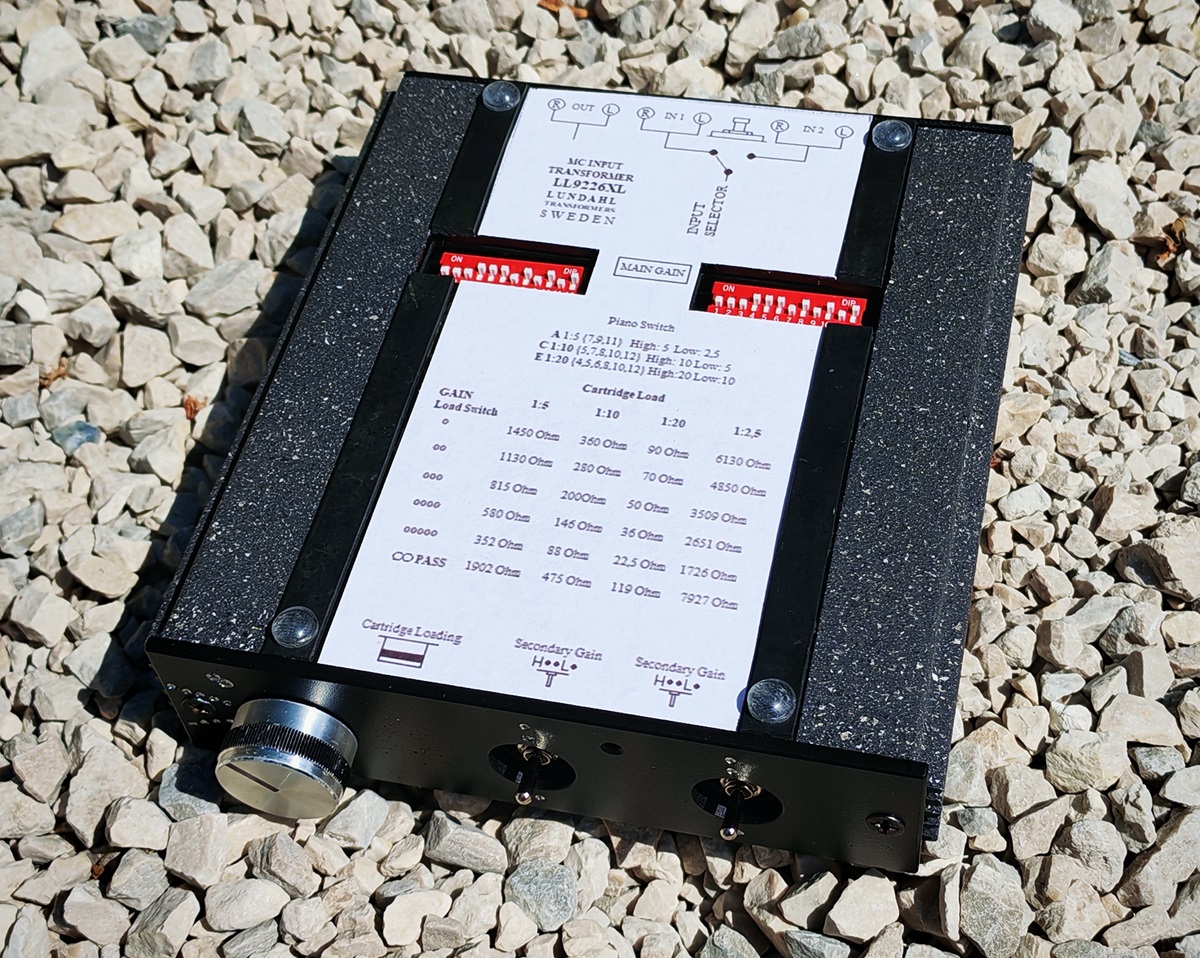

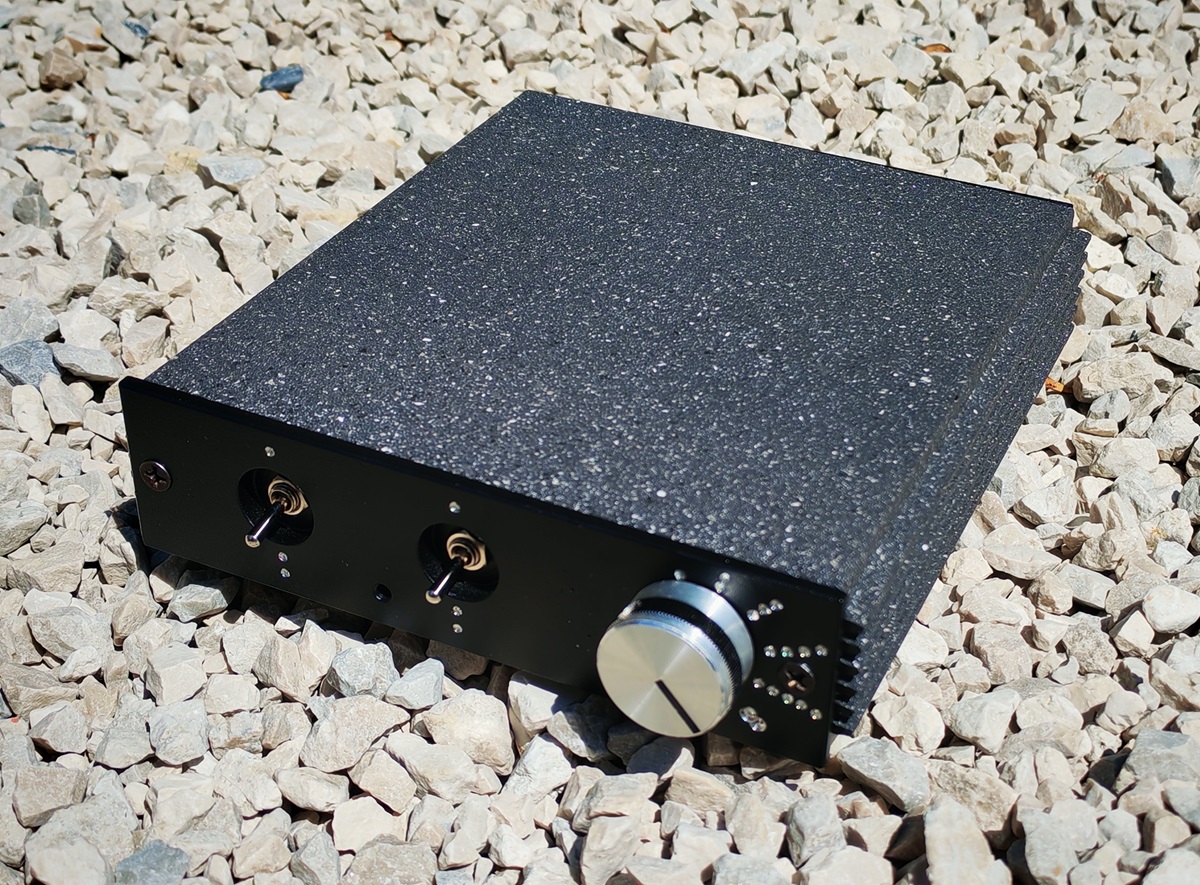

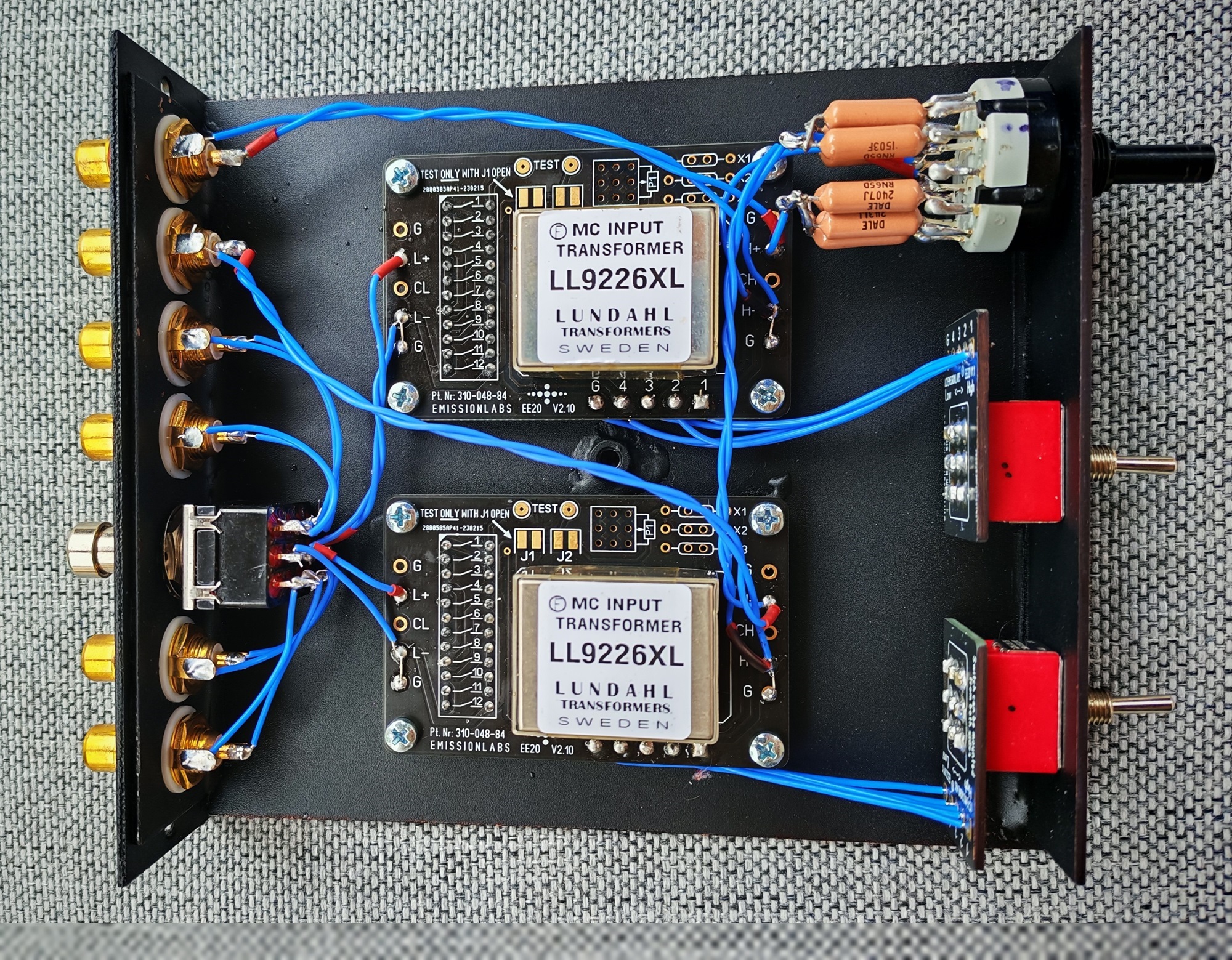

This beautiful constructed case, gets the maximum out of the popular Lundahl transformer LL9226-XL, using the EE20 PCBs. It is currently used by Bela with a Zyx R50 Bloom 3 cartridge. It allows to choose between two inputs, and the load is adjustable as well. His standard configuration is to choose between 10x or 20x gain, but since the Piano switches can be reached from the bottom, any gain between 2.5x and 20x can be selected. Together with the selectable load, it makes this Step Up Transformer unit fully universal.
Click on each image to enlarge it
