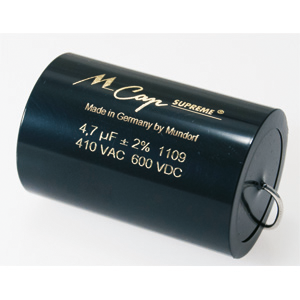

Mundorf Mcap Supreme Caps
Specifications:
Dielektric: Polyprophylene
Dielectric strength: 600-1400 VDC
Loss angle: tan∂ = 0.0002@1 kHz; 0.0001@10 kHz
Permissible ambient temperature 85°C/185°F
Very soon after its market launch in 1992 the MCap® SUPREME Classic has been internationally acclaimed as top-class capacitor. Today it is
considered by many users as a milestone in the modern audiophile
capacitor generation.
The self-healing PP capacitor film used here is first metallized with
the thickest possible aluminium layer, then wound precisely into
distinctive SUPREME winding geometry and finally potted by hand into
special aluminium cans to minimize microphony.
These features are reflected in the music reproduction with their
holographic three-dimensionality and outstanding tonal balance.
MCap SUPREME Classic | ||||
---|---|---|---|---|
Order Code | Capacity [µF] |
[VDC] | Body Ø*L [mm] |
Wire Ø*L [mm] |
SUP8-0,10 | 0,10 ±2% | 1400 | 17 * 36 | 0,8 * 60 |
SUP8-0,22 | 0,22 ±2% | 1400 | 20 * 38 | 1,0 * 60 |
SUP8-0,33 | 0,33 ±2% | 1400 | 25 * 56 | 1,0 * 60 |
SUP8-0,47 | 0,47 ±2% | 600 | 20 * 39 | 1,0 * 60 |
SUP8-0,68 | 0,68 ±2% | 600 | 20 * 39 | 1,0 * 60 |
SUP8-1,00 | 1,0 ±2% | 600 | 20 * 39 | 1,0 * 60 |
SUP8-1,50 | 1,5 ±2% | 600 | 25 * 52 | 1,0 * 60 |
SUP8-1,80 | 1,8 ±2% | 600 | 25 * 52 | 1,0 * 60 |
SUP8-2,20 | 2,2 ±2% | 600 | 25 * 52 | 1,0 * 60 |
SUP8-2,70 | 2,7 ±2% | 600 | 30 * 56 | 1,0 * 60 |
SUP8-3,30 | 3,3 ±2% | 600 | 30 * 56 | 1,4 * 60 |
SUP8-3,90 | 3,9 ±2% | 600 | 30 * 56 | 1,4 * 60 |
SUP8-4,70 | 4,7 ±2% | 600 | 36 * 56 | 1,4 * 60 |
SUP8-5,60 | 5,6 ±2% | 600 | 36 * 56 | 1,4 * 60 |
SUP8-6,80 | 6,8 ±2% | 600 | 41 * 53 | 1,4 * 60 |
SUP8-8,20 | 8,2 ±2% | 600 | 36 * 106 | 1,4 * 60 |
SUP8-10 | 10 ±2% | 600 | 36 * 106 | 1,4 * 60 |
SUP8-15 | 15 ±2% | 600 | 41 * 106 | 1,4 * 60 |
SUP8-18 | 18 ±2% | 600 | 41 * 106 | 1,4 * 60 |
SUP8-22 | 22 ±2% | 600 | 50 * 106 | 1,4 * 60 |
